WebUI SmartRoad

This is the base or core of the SmartRoad System. The main elements of the WebUI are described in this section.

Home page​

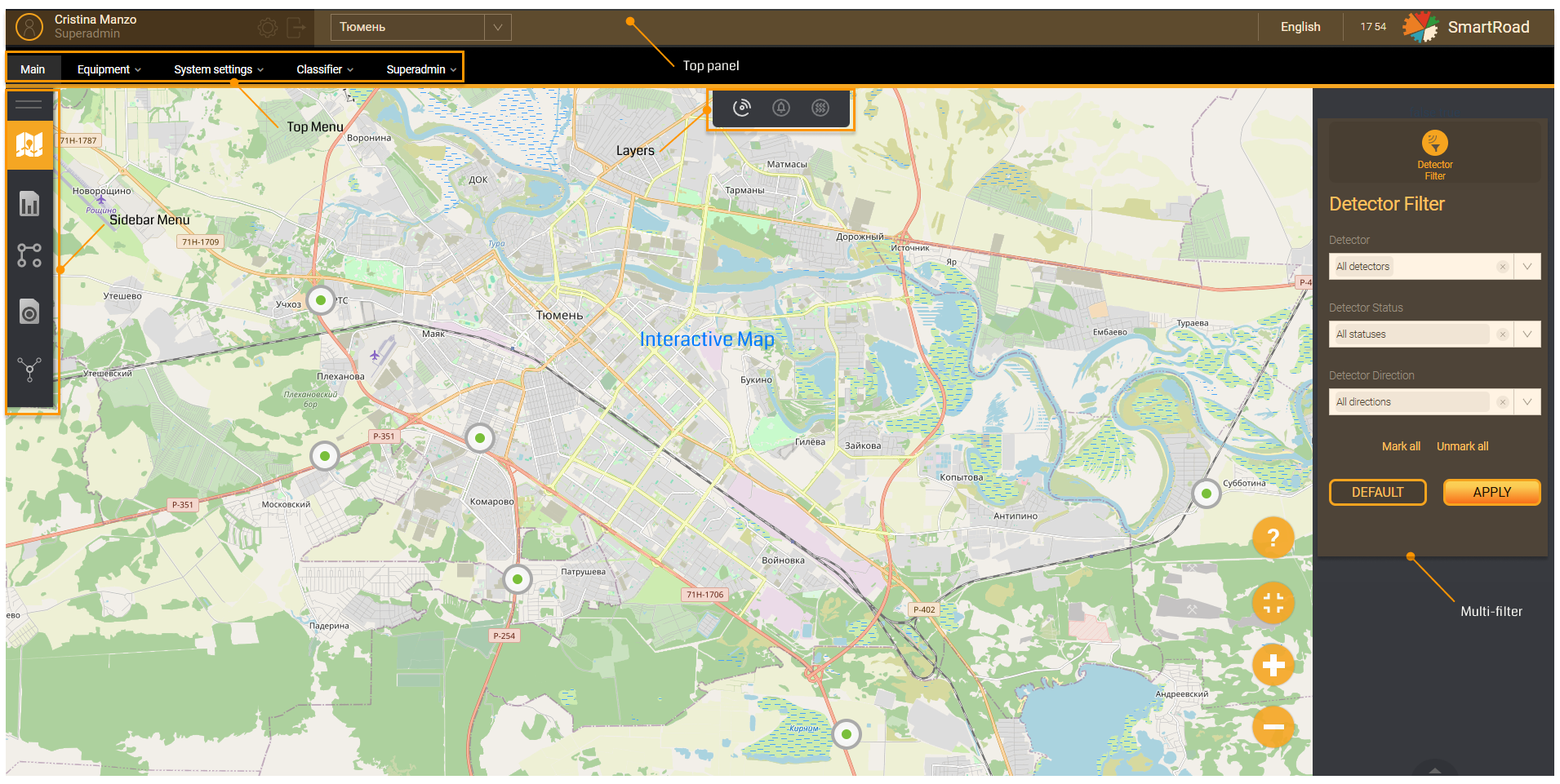

The home or main page is the principal section of the web interface. It contains a top panel, a top menu, a side menu, an interactive map as well as a multi-filter (on the right). It is possible to return to the main page from any other section of the web interface by clicking on the corresponding item in the side or top menu.

Main page

Top panel​

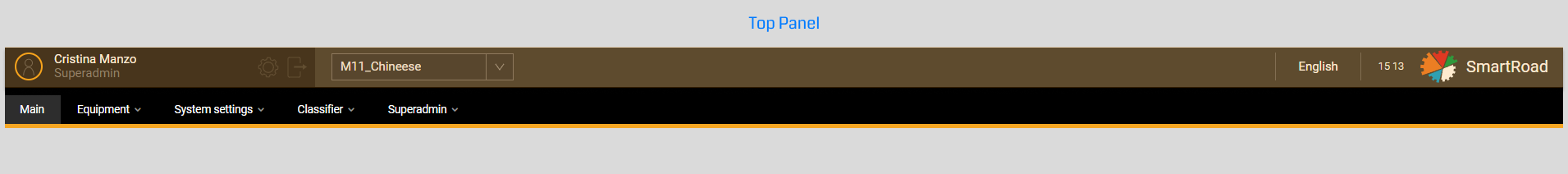

The top panel contains:

  • user account information;
  • information about the operational monitoring block (optional functionality if the user is an administrator or event rule operator);
  • transition button Profile Settings to set up a user account profile;
  • button Logout to exit the web interface;
  • drop-down list Project Selection;
  • drop-down list Interface language;
  • current time of the user's computer;
  • SmartRoad logo.

Top panel

User profile​

The User profile is designed to display information about the current account in the web interface.

Menu item

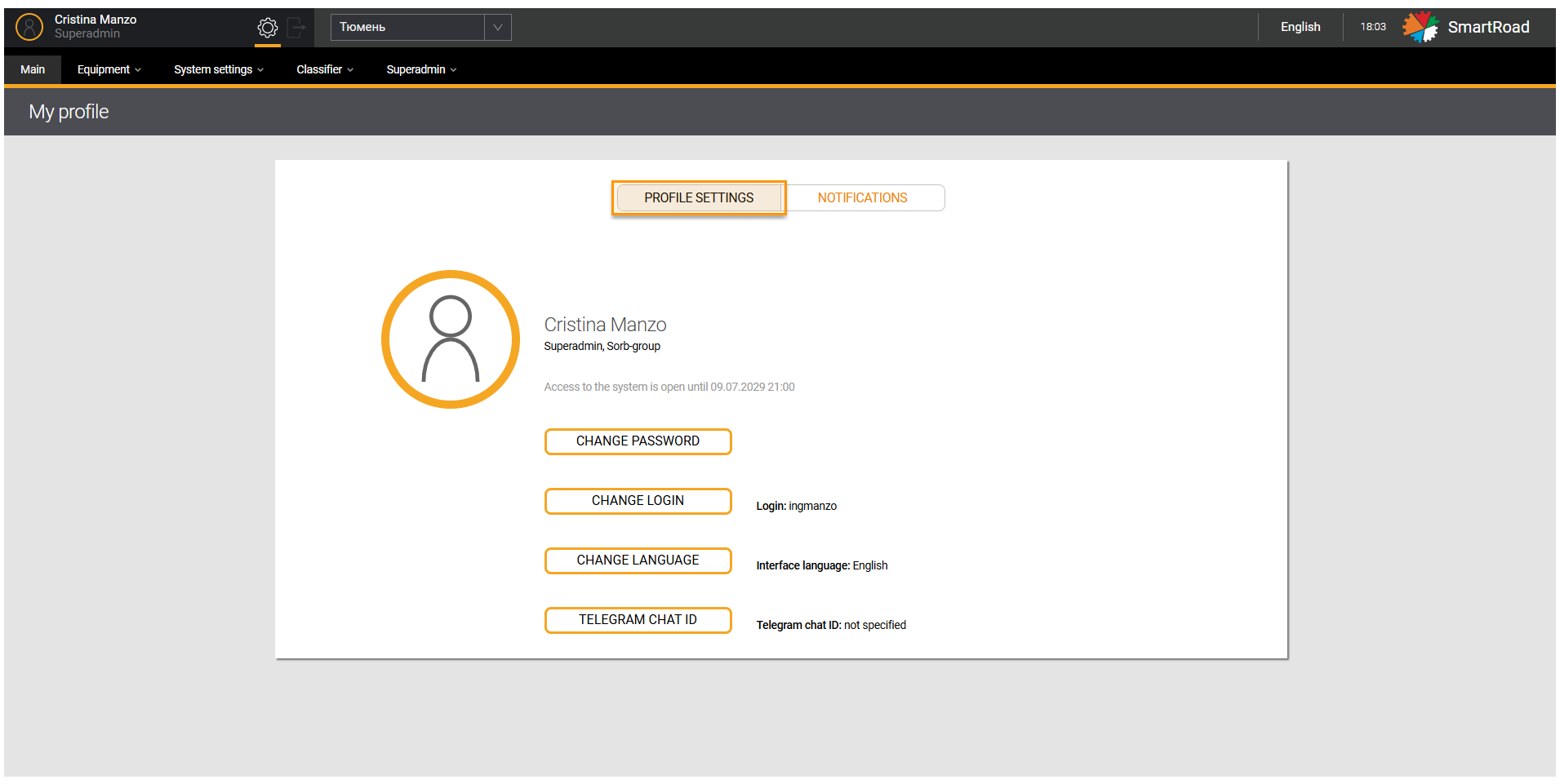

Click on Profile settings icon in the top panel to the right of the user's name to go to the My Profile section. It allows you to change or update user account settings.

In Profile Settings tab the user can:

  • change avatar image;
  • find out the expiration date of your account;
  • change password;
  • change login;
  • change the language;
  • indicate Telegram chat ID.

You should contact the Sorb Engineering technical support specialist to extend the validity period of your account.

My profile

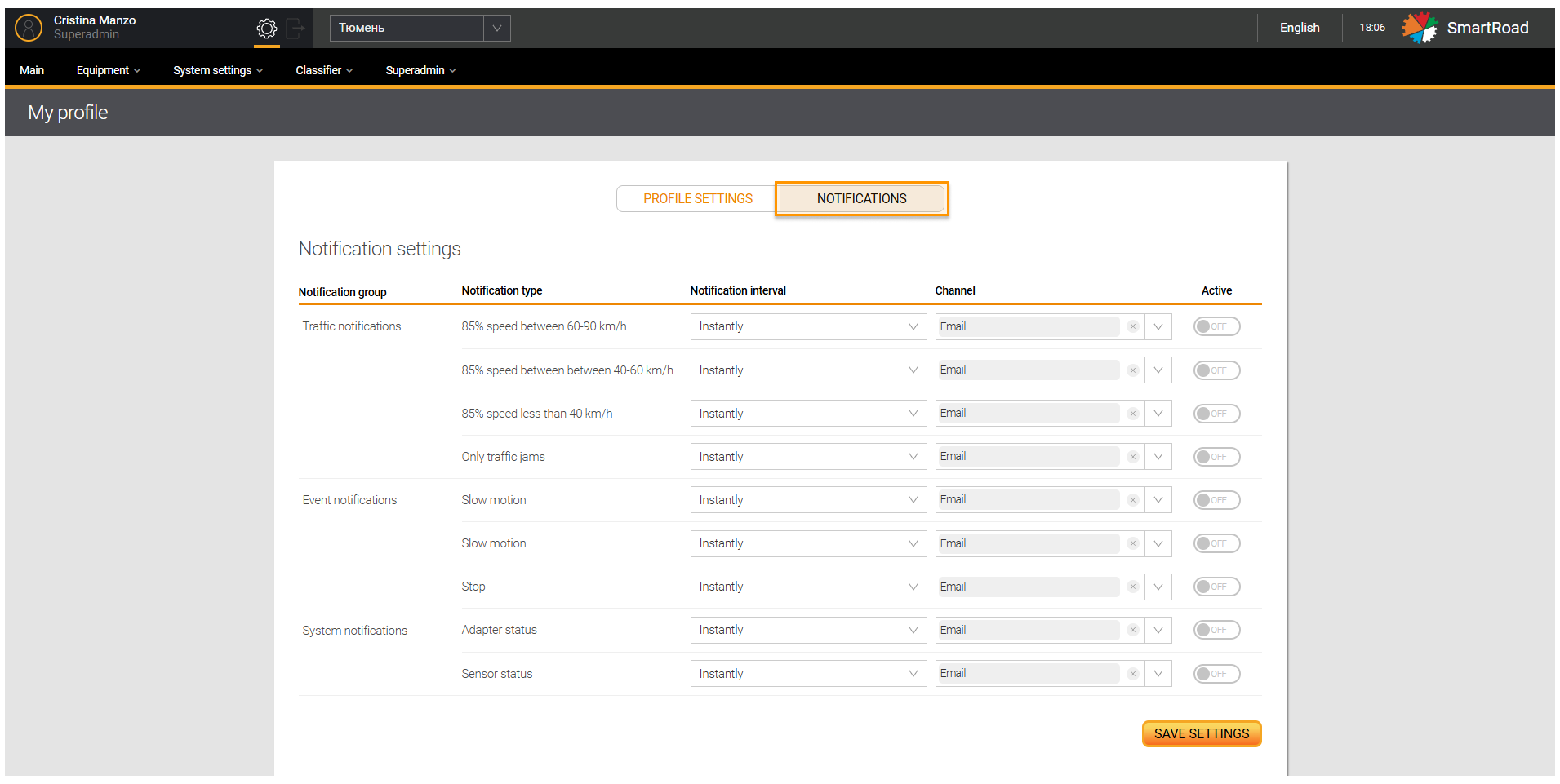

In section Notifications the user can set several options to receive notifications about events, adapter and detector statuses, vehicle speed of 85% and traffic situation by email or Telegram.

Notifications

Click on menu item Home page to exit from this section My profile.

Event notifications for operators​

A notification area where is displayed the number of events that have not been processed before the expiration of the automatic closing time.

The number of active (unclosed) events should be displayed to the right of the icon.

Event Notifications

When clicking the notification icon, a modal window Events to process will open.

Change user​

You should just click on Logout icon located in the top panel to change the user through the web interface.

Exit icon

Project selection​

The item Project Selection is implemented by a drop-down list and allows you to select a project for monitoring.

When clicking on this item, the user is shown a list of projects available for selection.

Project list

Interface language​

This element is localized in the Top panel on the right of the interface, and can also be found through the Profile Settings on the page My profile.

Language selection

Top menu​

The Top Menu is used to configure hardware components and the System as a whole.

Only Administrators have access to this menu.

Top menu

In the top menu, the user has access to tools for adding and configuring detectors, setting access rights to the system and its sections, setting up the classification of road objects, adding and configuring adapters, etc.

This Navigation menu for the web interface includes:

  • Home or main page
  • Equipment (i.e. hardware components): Detectors, Adapters, Cabinets or racks, Logs, Road parameters.
  • System settings: Event rules, Projects, Users, Roles, Road sections.
  • Classifier: Groups of classes, Road directory, Types of roads and types of lanes.
  • Superadmin: Developer settings, Organizations.

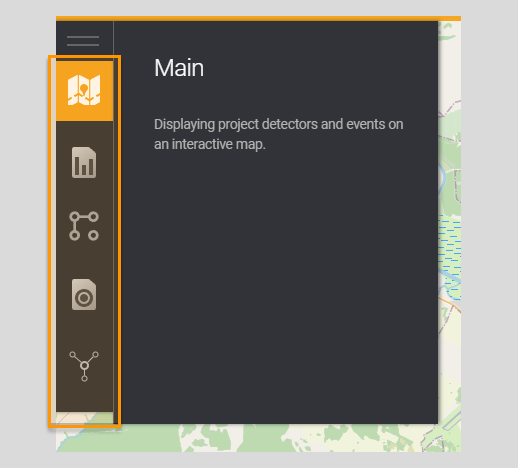

The sidebar menu is intended for navigation through sections of the System. Navigation is carried out by clicking on the required section of the side menu. It provides the sections: Home or main page, Statistics, Events, main parameters of road traffic, Primary data analysis.

Sidebar menu
