Module for analysis of the main parameters of road traffic
Module for analysis of the main parameters of road traffic provides the user with information about the intensity and the composition of the traffic flow in the form of reports, developed according to the normative acts, and makes it possible to view characteristic values for an hour and for a weekday (under development) and charts to analyze the traffic flow. The module is presented in the side menu of the web interface in the section Analysis of the main parameters of road traffic.

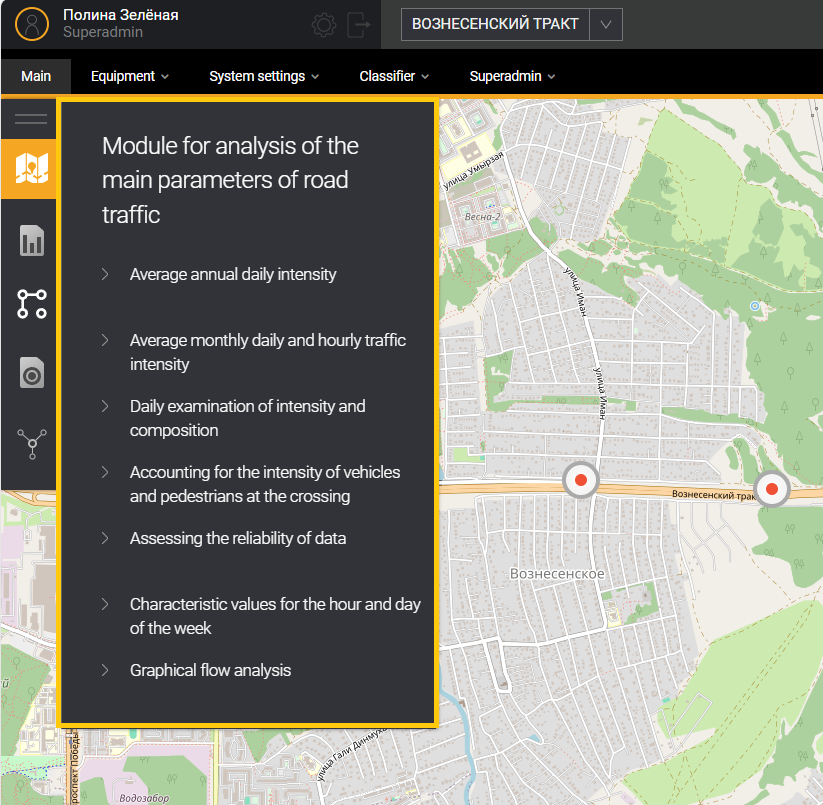

The section consists of the following subsections: Average annual daily intensity,Average monthly daily and hourly traffic intensity, Daily examination of intensity and composition, Accounting for the intensity of vehicles and pedestrians at the crossing (under development),Assessing the reliability of data, Characteristic values for the hour and day of the week (under development) and Graphical flow analysis.

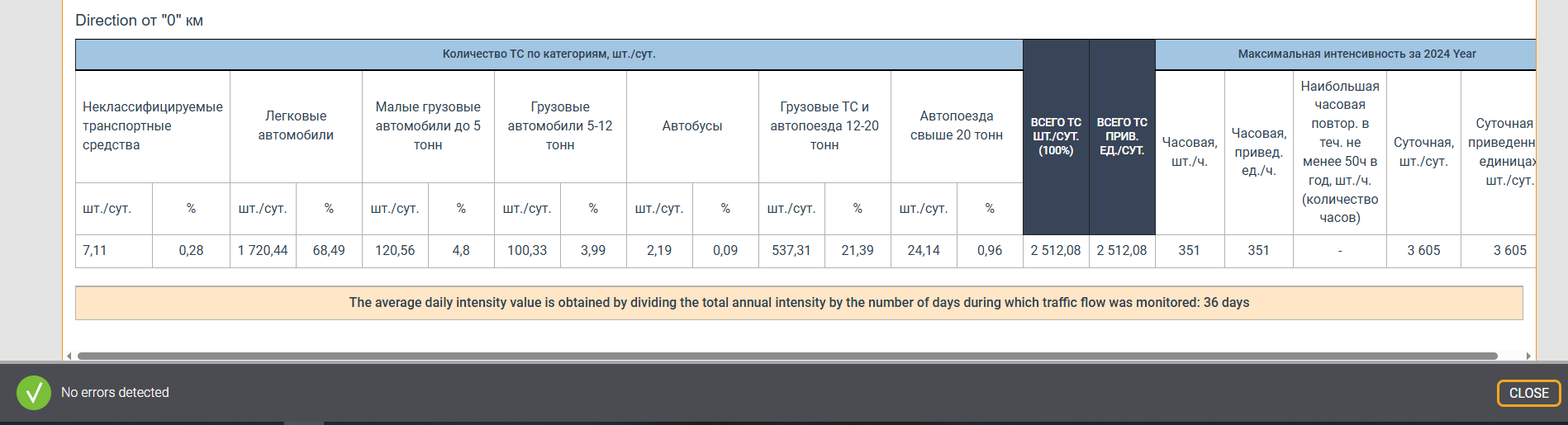

Report "Average annual daily intensity"
The report Average annual daily intensity provides the user with information about the average amount of vehicles by classes and about maximum hourly and daily intensity in physical and in reduced units (multiplied by the conversion factor) for a closed year. The report form Average annual daily intensity corresponds to the format described in appendix G and D GOST 32965-2014 (hybrid format).

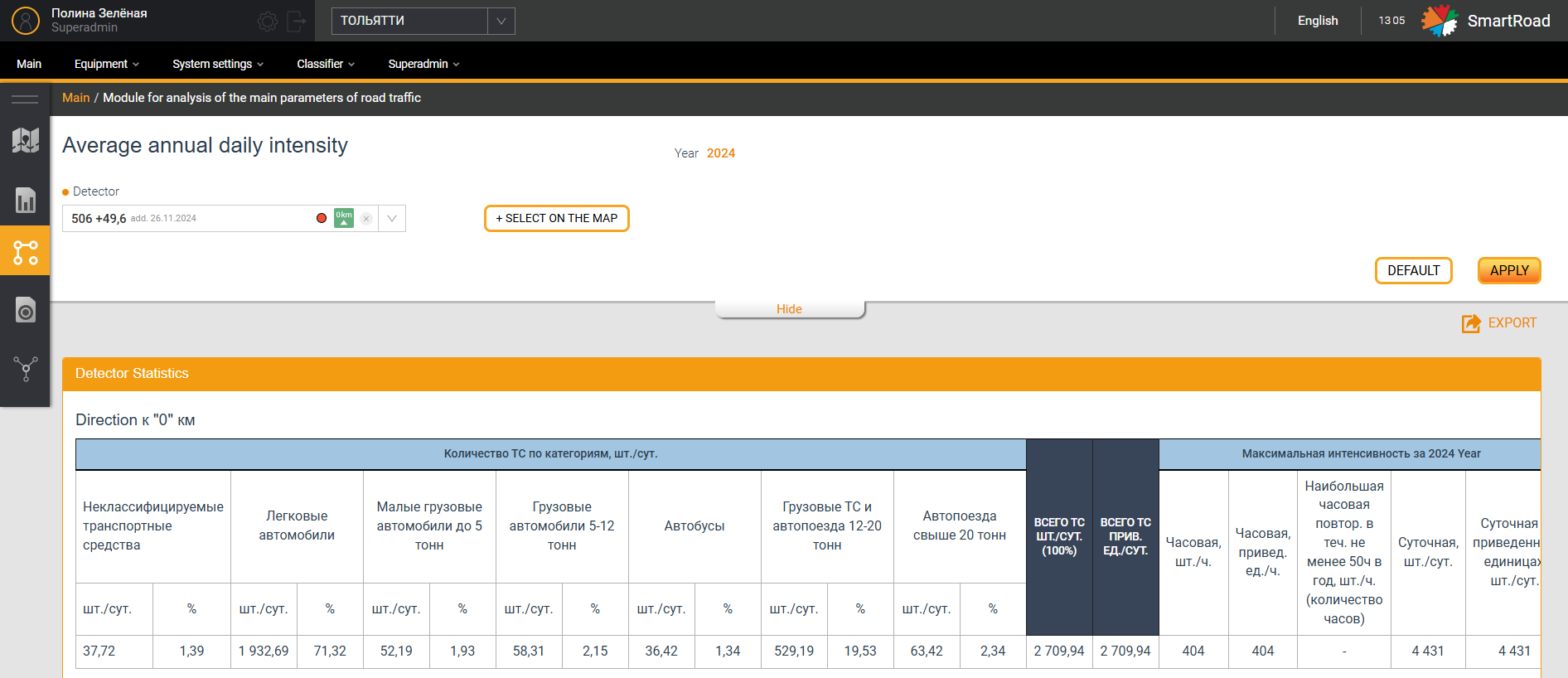

The page Average annual daily intensity contains a filter for entering report parameters and the report itself in tabular form. The report is made for each direction separately. To build a report a user should fill in filter mandatory fields. Last year is the default value in the filter block when selecting a year. Current year cannot be selected.
On the page Mid-year intensity filter parameters are identical to ones on the page Report settings "Statistics. Detailed report" . Methods of calculation parameters of maximum intensity for a selected year in the report table Average annual daily intensity, are given in the corresponding section.
In the following table you can see parameters of a tabular part of the report Average annual daily intensity.
| Parameter | Description |
|---|---|
| Vehicle class, units/day | Detected objects number of a certain class per day. Classes are configured in the Classifier menu section. |
| Vehicle class, % | Vehicle percentage of a certain class of the total amount of vehicles |
| Total vehicle amount units/day (100%) | Vehicle amount per day in all lanes |
| Total vehicle amount reduced units/day | Vehicle amount per day in all lanes in reduced units (multiplied by the conversion factor) |
Report "Average monthly daily and hourly traffic intensity"

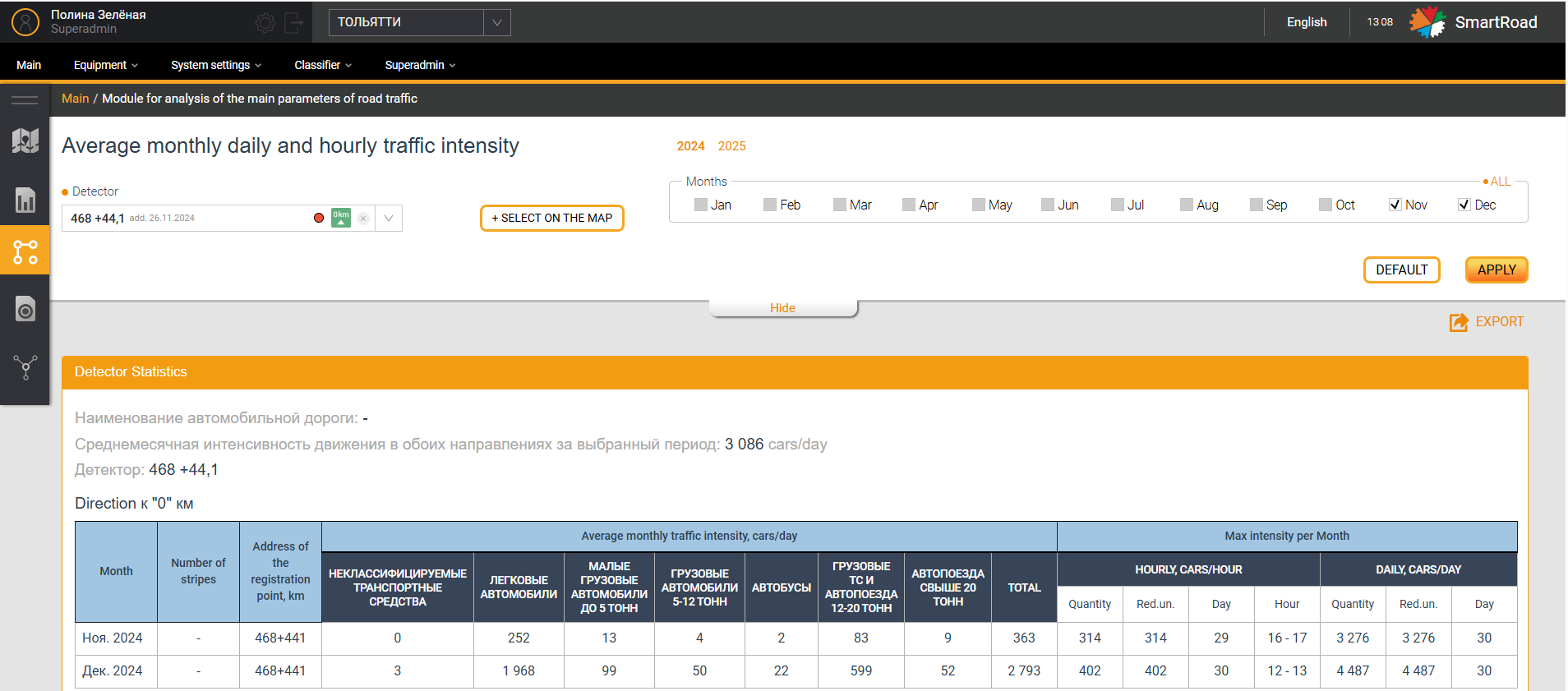

The page Average monthly daily and hourly traffic intensity contains a filter for entering report parameters and the report itself in tabular form . The report is made for each direction separately. To build a report a user should fill in filter mandatory fields (select a detector and a report period).
The report Average monthly daily and hourly traffic intensity provides the user with information about an average number of vehicles of each class per month and about maximum hourly and daily intensity in reduced and physical units for a selected period (closed month). The report form Average monthly daily and hourly traffic intensity corresponds to the format, described in ODM 218.2.032-2013 (adapted version according to the appendix D). Current year and a previous month are default values for report building in the filter in the time period selection block. Current month can not be selected.
Filter parameters on the page Average monthly daily and hourly traffic intensity are identical to ones on the page Report settings "Statistics. Detailed report". Methods of calculation parameters of maximum intensity for a selected month (daily and hourly) in the report table Average monthly daily and hourly traffic intensity , are given in the corresponding section.

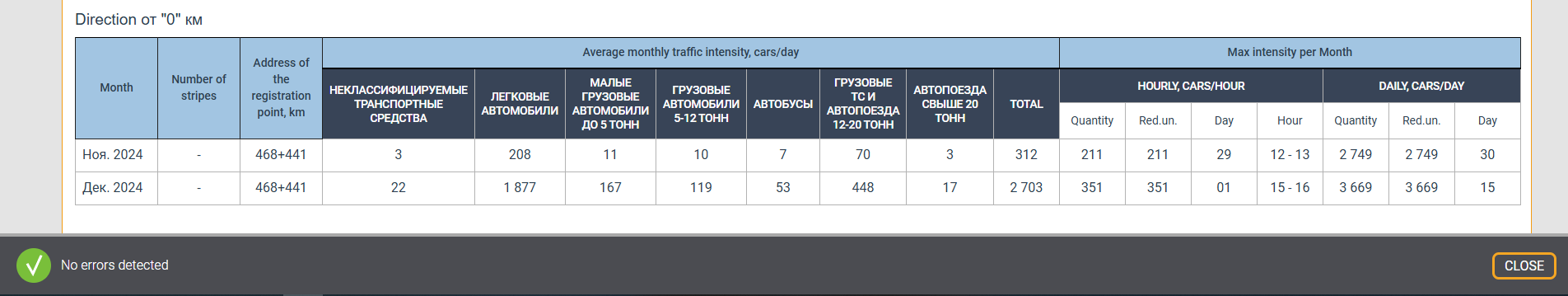

In the following table you can see parameters of a tabular part of the report Average monthly daily and hourly traffic intensity.
| Parameter | Description |
|---|---|
| Month | Selected month for report building |
| Number of lanes | Number of lanes of a selected automobile road |
| Metering point address, km | Equipment placement address |
Monthly average traffic intensity, units/day
| Parameter | Description |
|---|---|
| Vehicle class | Detected objects number of a certain class |
| Total | Detected objects number of all classes per month |
Maximum monthly intensity (hourly, units/day)
| Parameter | Description |
|---|---|
| Day | Day with the maximum hourly intensity per month in a selected year |
| Hour | Hour-interval with the maximum hourly traffic intensity per month in a selected year |
Maximum monthly intensity (daily, units/day)
| Параметр | Описание |
|---|---|
| Day | Day with the maximum daily intensity per month in a selected year |
Report "Daily examination of intensity and composition"
Daily examination of intensity and composition is a report which provides the user with information about the intensity and composition of the traffic flow by hours of a selected day, which was developed according to the Decree №114 of Russian Transportation ministry "On Approval of the Procedure for Road Traffic Monitoring" (appendix №3).

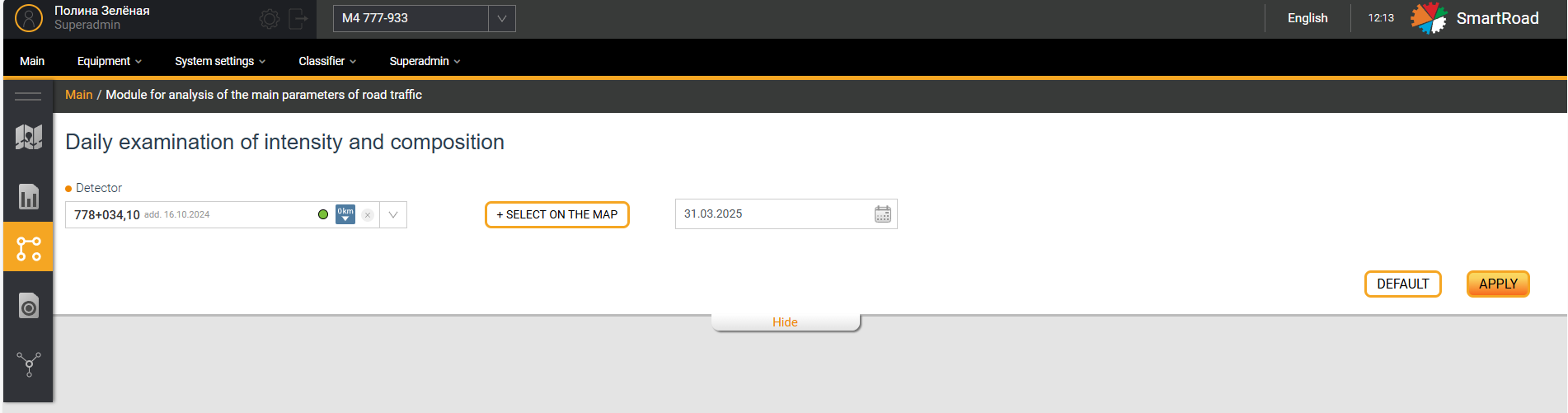

The page Daily examination of intensity and composition contains a filter for entering report parameters and the report itself in tabular form. To build a report a user should fill in filter mandatory fields. Yesterday is a default report-building period. (current month and a previous day). Future date cannot be selected. If a detector was created less than a day ago, the Apply button would be disabled.
Filter parameters on the page Daily examination of intensity and composition are identical to ones on the page Report settings "Statistics. Detailed report.

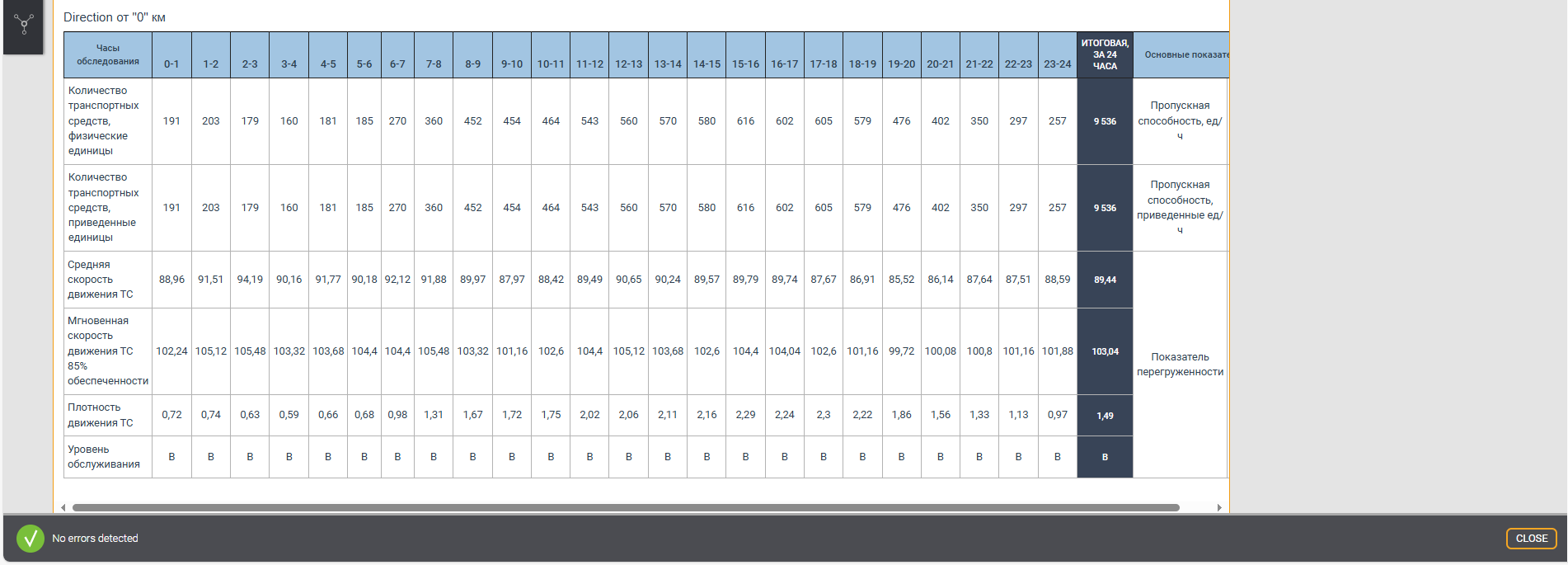

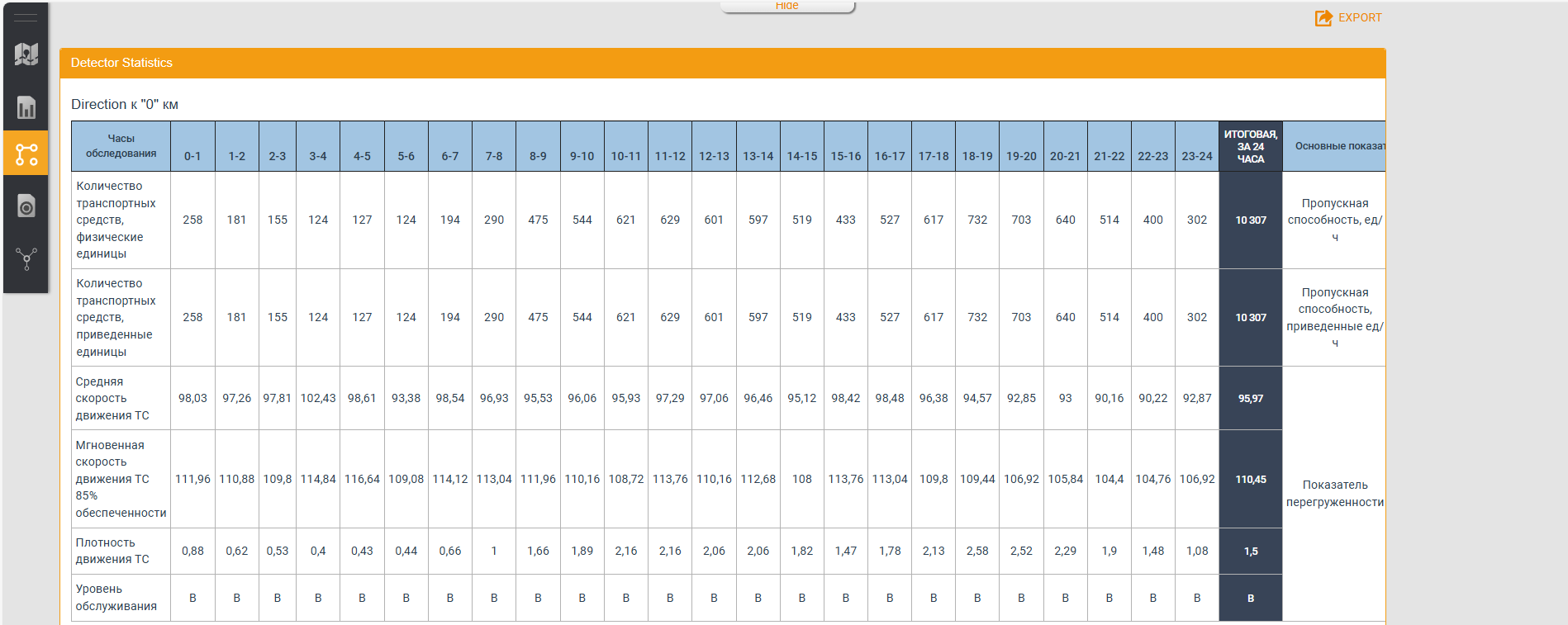

Information, aggregated in the report, is displayed in a tabular form. The report in tabular form is made for each direction separately. Methods of calculation main traffic flow parameters in the report table Daily examination of intensity and composition, are given in the corresponding section.
In the following table you can see parameters of a tabular part of the report Daily examination of intensity and composition.
| Parameter | Description |
|---|---|
| Examination hours | Day in the table is displayed split into hour-intervals (columns) |
| Total for 24 hours | Parameter total values for 24 hours |
| Total vehicle amount units/hour (100%) | Hourly intensity in physical units |
| Total vehicle amount reduced units/hour | Hourly intensity in reduced units |
Report "Accounting for the intensity of vehicles and pedestrians at the crossing"
Accounting for the intensity of vehicles and pedestrians at the crossing is a report, which provides the user with data about the composition of the traffic flow and about the amount of pedestrians for a selected period (closed hour). The report was developed according to the Decree №114 of Russian Transportation ministry.

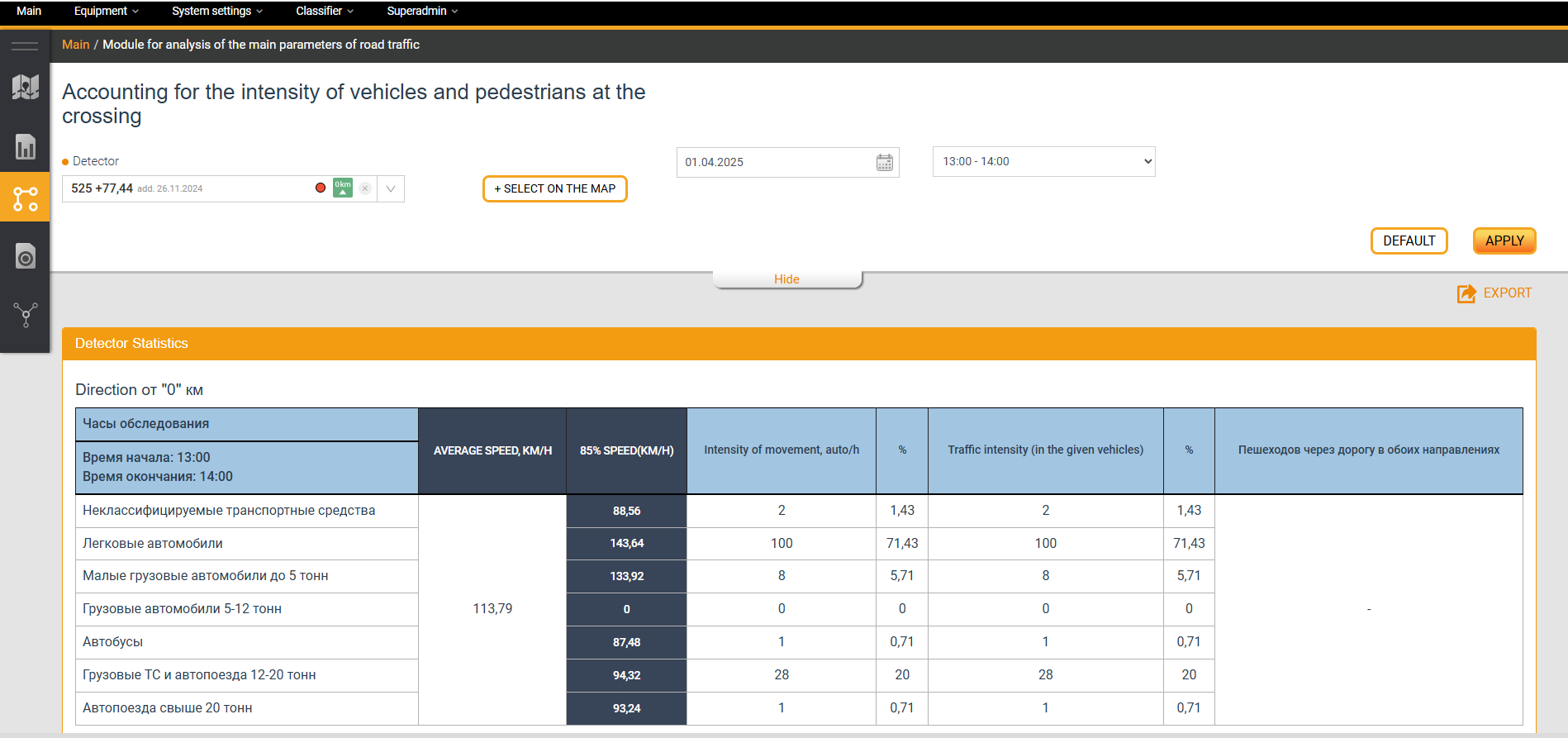

The page Accounting for the intensity of vehicles and pedestrians at the crossing contains a filter for entering report parameters and the report itself in tabular form. The report is made for each direction separately. To build a report a user should fill in filter mandatory fields. In the filter block a user should select a one-hour time period for a selected date. Yesterday (a closed day) is a default value. If a detector was created less than 24 hours ago, the Apply button would be disabled. Other filter parameters on the page Accounting for the intensity of vehicles and pedestrians at the crossing are identical to ones on the page Report settings "Statistics. Detailed report".
Methods of calculation of main parameters of the traffic flow in the report table Accounting for the intensity of vehicles and pedestrians at the crossing are given in the corresponding section.

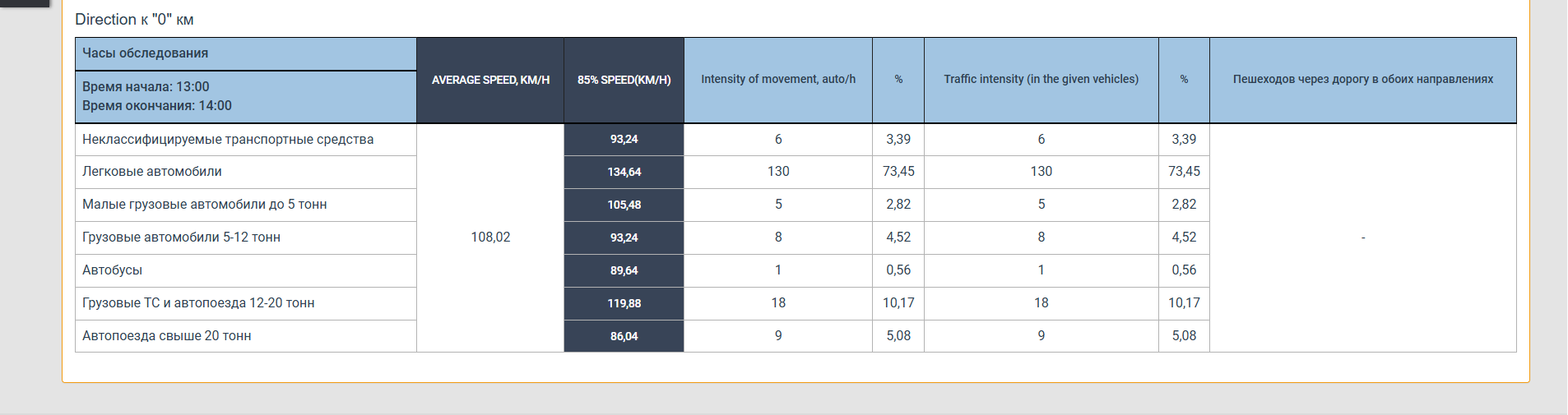

In the following table you can see parameters of a tabular part of the report Accounting for the intensity of vehicles and pedestrians at the crossing
| Parameter | Description |
|---|---|
| Examination period, start time, end time | Start and end time of the time interval for report-building |
| Vehicle classes | Vehicle classes, configured in the «Classifier» section |
| % | Vehicle percentage of a certain class (configured in the «Classifier» section) of the total vehicle amount of vehicles, passing for an hour in one direction on a certain road section |
| % | Vehicle percentage (in reduced units) of a certain class (configured in the «Classifier» section) of the total vehicle amount (passing for an hour in one direction on a certain road section) |
| Pedestrians at the crossing in both directions | Current functionality is being developed. |
Assessing the reliability of data
The report Assessing the reliability of data was developed to compare factual (current) traffic intensity values with ones of typical for a selected day and hour. The assessment is made according to GOST R 70044-2022.

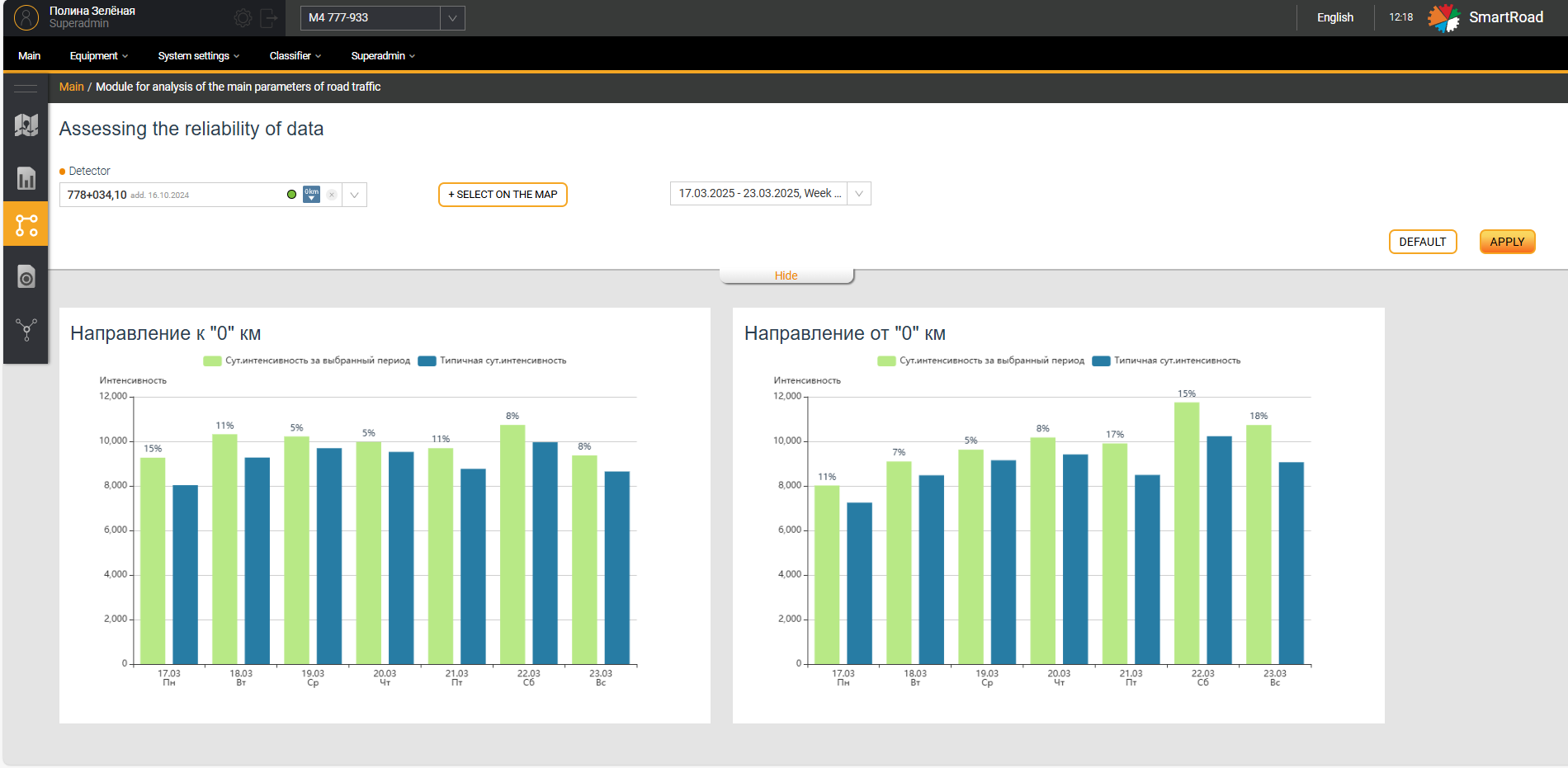

The page Assessing the reliability of data contains a filter for entering report parameters and the report itself in the form of diagrams and charts in each direction separately.
To build a report a user should fill in filter mandatory fields. Filter parameters on the page Assessing the reliability of data are identical to ones on the page Report settings "Statistics. Detailed report.
The main diagram is a comparison chart, demonstrating the difference between the values of factual daily intensity and typical intensity values on weekdays - a bar chart. An interval of no more than three years is used as a statistical evaluation period (for typical values).
Assessing the reliability of data is displayed above the bar of daily intensity factual values in the form of the percentage deviation value of the typical value. The data which was considered unreliable is shown in red colour (deviation is more than 50%). On the X axis on the chart you can see the dates of a selected week, on the Y axis - values of daily intensity.

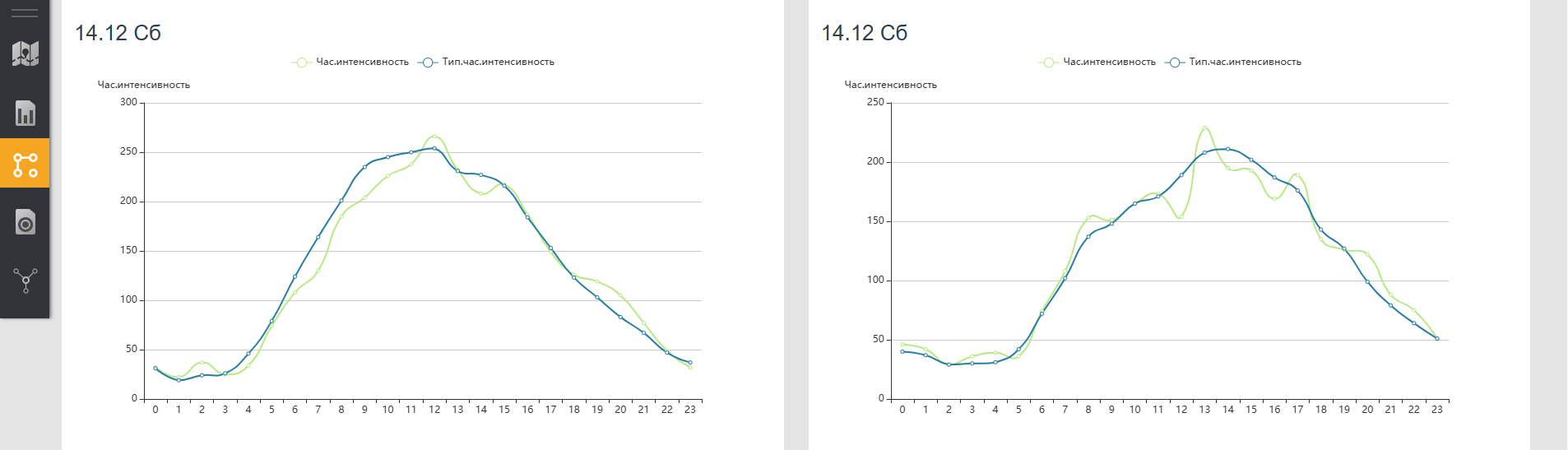

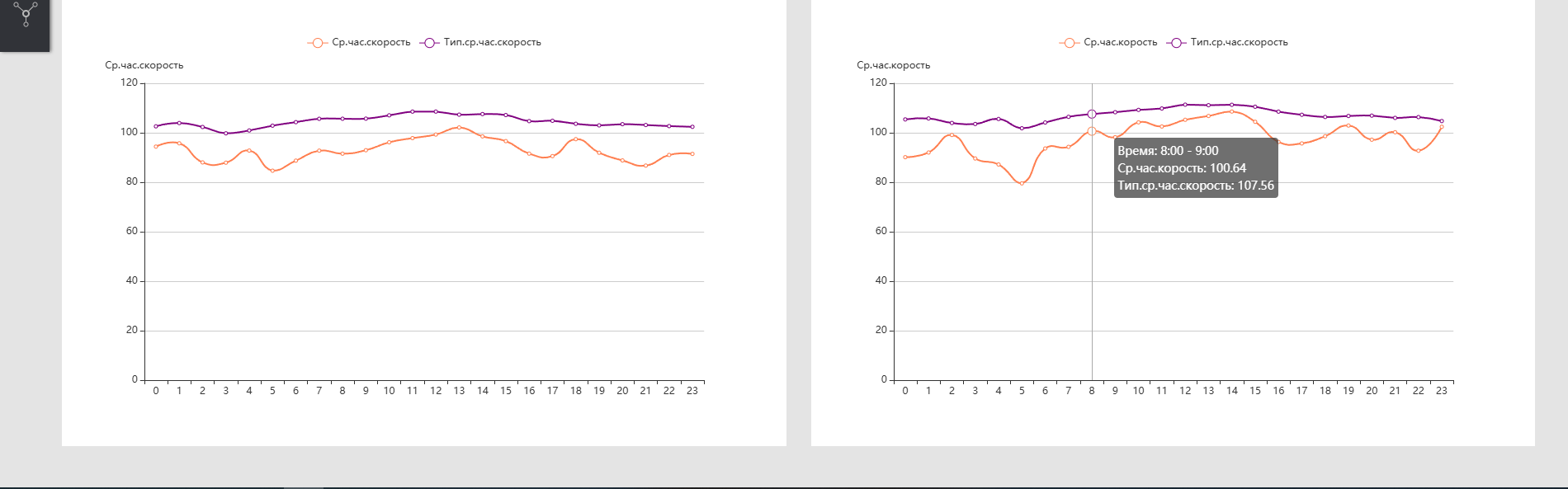

On clicking on one of the bars of a weekday below each of the bar charts there will appear two additional charts, displaying the change of traffic hourly intensity and of the flow speed (both actual values observed on the road section and the characteristic values of a weekday. On the change charts of hourly intensity and traffic flow speed on the X axis you can see one-hour time interval values, on the Y axis - values of the listed above traffic flow parameters (hourly intensity and average speed).
Charts and diagrams are interactive elements. A user can hide and show elements of charts and diagrams, clicking on the corresponding words above the chart (the legend). Charts of the average speed and hourly intensity can be scaled by scrolling the mouse wheel. On hovering the metering points of the chart a user can see additional information about the absolute values - typical and factual - speed or intensity (depending on the chart) and the date on a tooltip.
Characteristic values for the hour and day of the week (the current functionality is being developed)

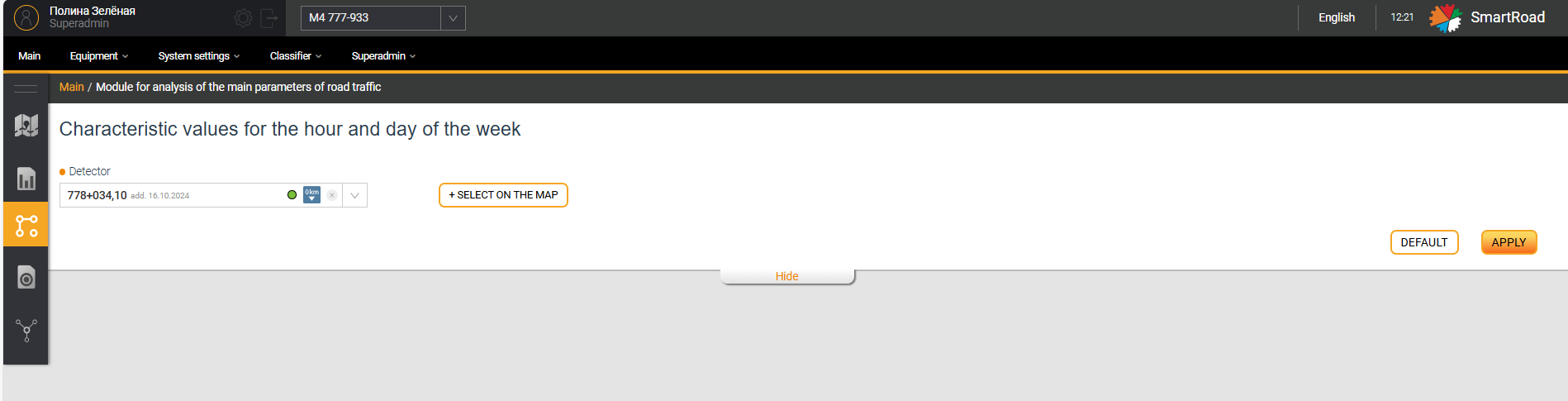

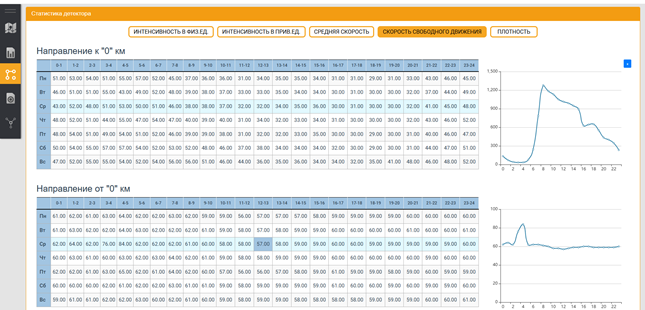

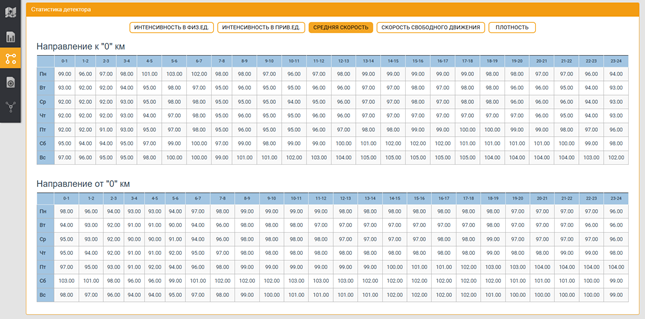

The page Characteristic values for the hour and day of the week contains a filter for entering report parameters and the report itself in tabular form, where in the tables are displayed characteristic values of the main parameters of road traffic, such as traffic density, 85% speed, average traffic flow speed, traffic intensity in physical and reduced units in every hour of a weekday. The report is made in each direction separately.
Traffic flow parameters are selected via buttons located above the table, at the same time the page and filter parameters won't be reset. On clicking on the table rows, to the right from the table there will appear charts of changes in road traffic parameters. Values of each parameter are displayed for every day and every hour. Weekday is selected by clicking on the table row simultaneously in every table. If a detector was created less than 24 hours ago, the Apply button would be disabled, the report won`t be built.
To build a report a user should fill in filter mandatory parameters.
Graphical flow analysis

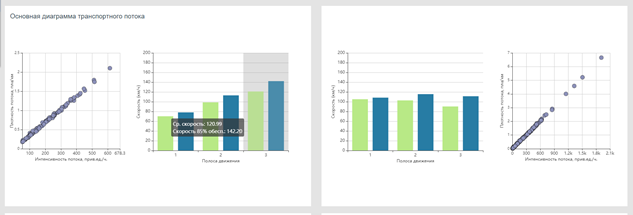

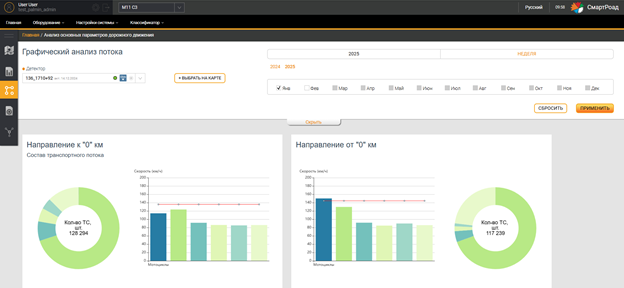

The page Graphical flow analysis contains a filter for entering report parameters and the following four charts and diagrams: traffic flow composition diagram (with vehicle speed displayed), main traffic flow diagram, traffic intensity in reduced units chart and traffic density per kilometer of a traffic lane in reduced units chart for a selected period of time. Charts and diagrams are made in each direction separately. To build a chart a user should fill in mandatory filter parameters.
Filter parameters on the page Graphical flow analysis are identical to those on the page Report settings "Statistics. Detailed reportv.
Composition of the traffic flow by direction (a donut chart and a bar chart). A donut chart shows the total amount of vehicles indicating the number of vehicles of each class and the percentage (%) of vehicles of each class of the total amount (on hovering the chart). Vehicle classes are configured in the
Classifiersection. On the bar chart on the X axis you can see the names of the corresponding vehicle classes, on the Y axis – speed values in km/h. On hovering the bar of the chart a user can see a tooltip with absolute values of average speed and average speed in reduced units for a selected vehicle class.Main traffic flow chart is displayed in the form of a scatter plot chart demonstrating the intensity of the traffic flow. A nearby bar chart shows average speed values and 85% speed by lanes in km/h (absolute values become available for a user on hovering the bar). The intensity chart shows the intensity and traffic density values on a certain date. On hovering a point on the scatter plot chart a user can see a tooltip with an absolute value of daily intensity in reduced units, traffic flow density value, traffic flow average speed value and the date of measuring the listed above parameters. The scatter plot diagram may be scaled by the X and Y axis.

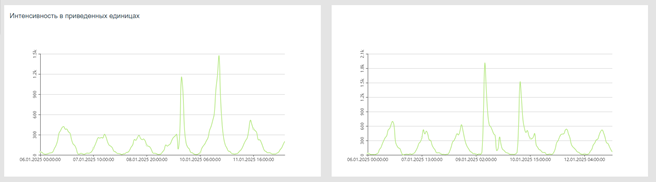

On the Intensity in reduced values chart, built for a certain period of time – a week, on the X axis a user can see the dates of a selected week, and on the Y axis – intensity values in reduced units. On hovering the metering point on the chart a user can see a tooltip with the date, time and absolute intensity value in the selected point of the graph. The graph may be scaled by scrolling the mouse wheel, the day will split into hours.

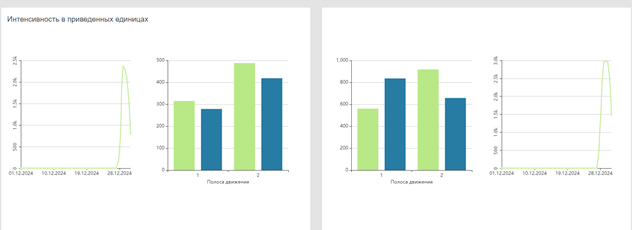

If a user selected a monthly time period, the intensity chart would split into two – a bar chart and a graph, identical to one built for a week. On the bar chart a user can see the values of daily intensity and values of vehicle maximum intensity in reduced units. Absolute values are available to users in the form of tooltips on hovering the bar on the chart.
On the intensity chart on the X axis you can see month dates, and on the Y axis – intensity values. Charts may be scaled by X and Y axis. On hovering the metering point on the graph a user will see a tooltip with absolute intensity values in a selected point in reduced units per day and the date, when the value was measured.

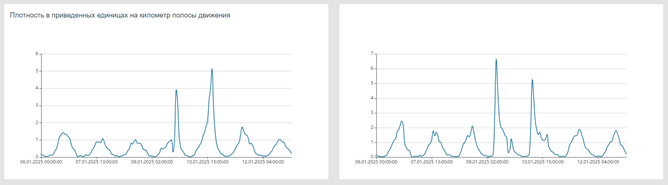

- Traffic density per kilometer of a traffic lane in reduced units chart. On the traffic density per kilometer of a traffic lane in reduced units chart, built for a selected period of time – a week, on the X axis a user can see the dates of a selected week, and on the Y axis – traffic density values. On hovering the metering point of the graph a user can see a tooltip with an absolute density value in the selected point. The chart may be scaled by scrolling the mouse wheel. In this case, days will split into hours.

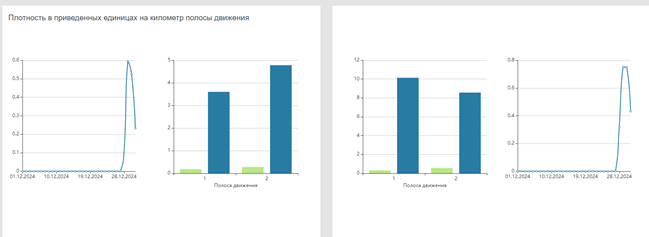

If a user selects a monthly interval, traffic density chart will split in the same way as the traffic intensity chart. On the bar chart there are shown values of average and maximum traffic density in red.units/km in each lane. Absolute values become available to a user in the tooltip on hovering the bar on the chart. On hovering the metering point of the chart there will appear a tooltip with an absolute value of traffic density.
On the traffic density chart there are month dates on the X axis and density values on the Y axis. The chart may be scaled by the X axis and the Y axis.
Exporting reports of the analyzing main traffic parameters module
Reports may be exported into external files in the Excel format. To export a report, the System must finish report generation. Export is carried out via an «Export» button
, located in the top right corner of the page below the filter, above the graphical part of the report. The tabular part of the report «Average annual daily intensity» differs from the document exported into an external file (a report in the form of appendixes G and D may be exported in the EXCEL format separately in order to comply with the original normative acts).
